Eyelets

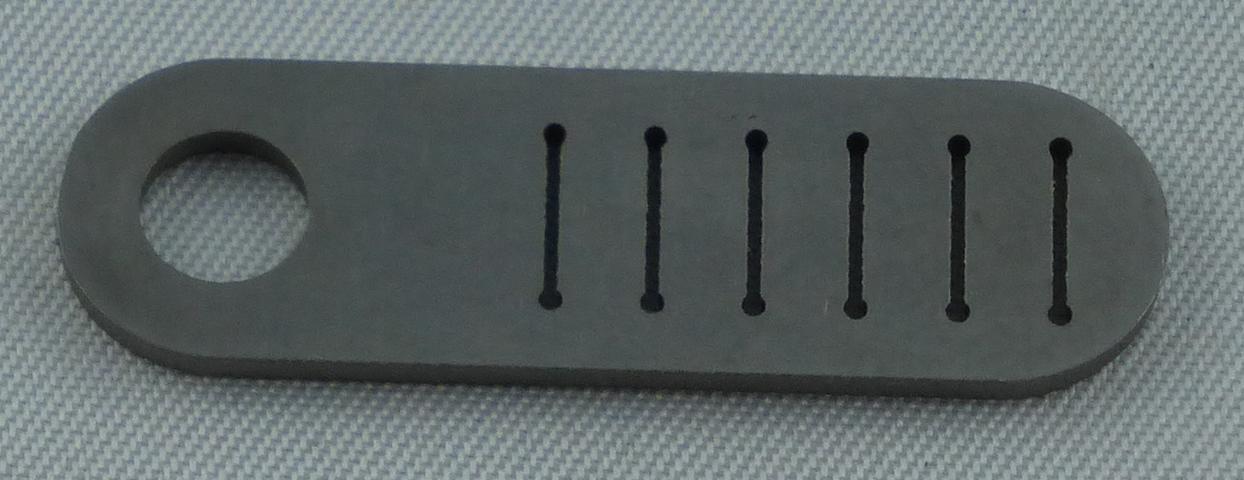

Eyelet with bore 5 mm suitable for rope 1,0 mm, 1,25 mm, 1,5 mm, 2 mm.

Dimensions:

Total length: 33 mm

Drilling Diameter 5 mm

Head Width: 1.5 mm

Tab width: 10 mm

Material: stainless steel 1,4301

The installation of the eyelet with the rope is very simple. Slide in the rope and the eylet in the vice until the rope lies wave-shaped in the tab. Attention not too strong so that the rope is sheared off.
